Kia Soul (SK3): Specifications & Consumer information
Dimensions.Engine

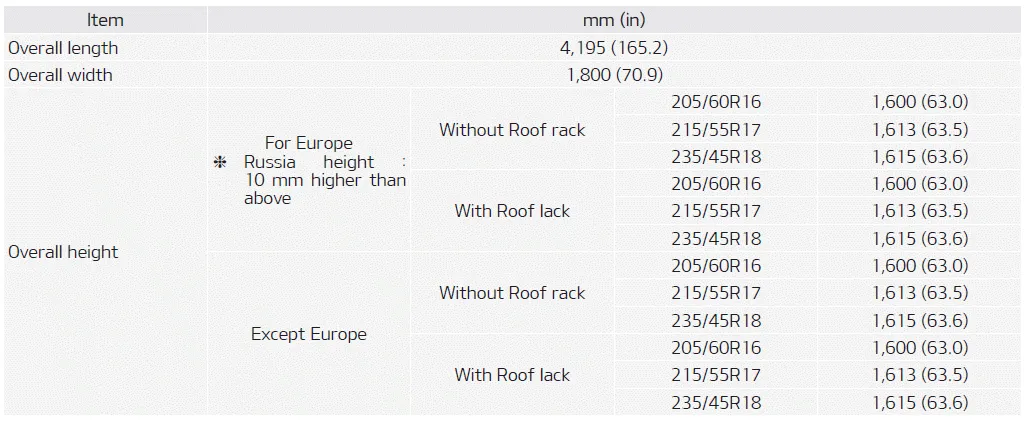

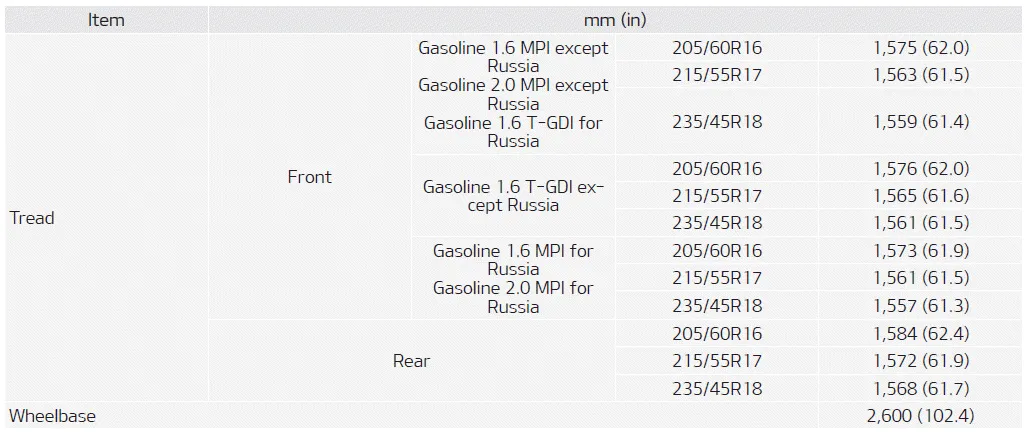

Dimensions

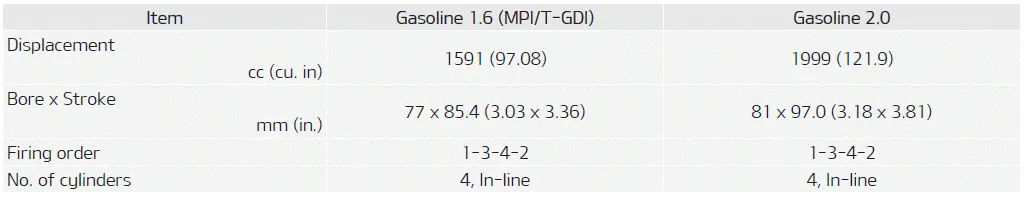

Engine
Gross vehicle weight. Luggage volume. Bulb wattage
Gross vehicle weight
Luggage volume
Min: Behind rear seat to upper edge of the seat back.
Max: Behind front seat to roof.

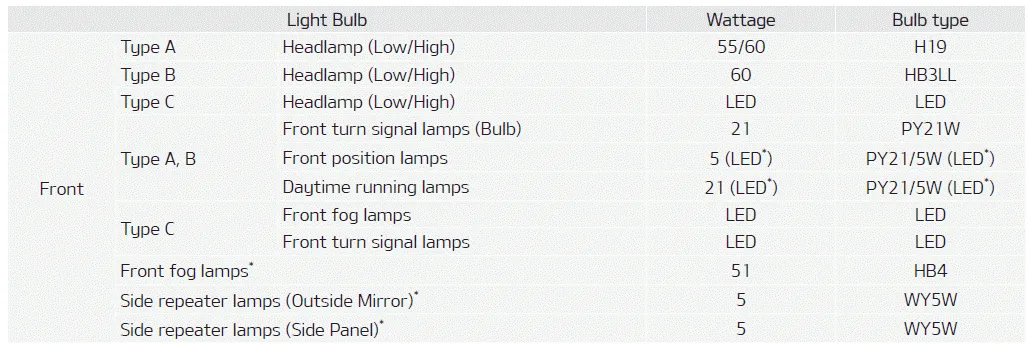

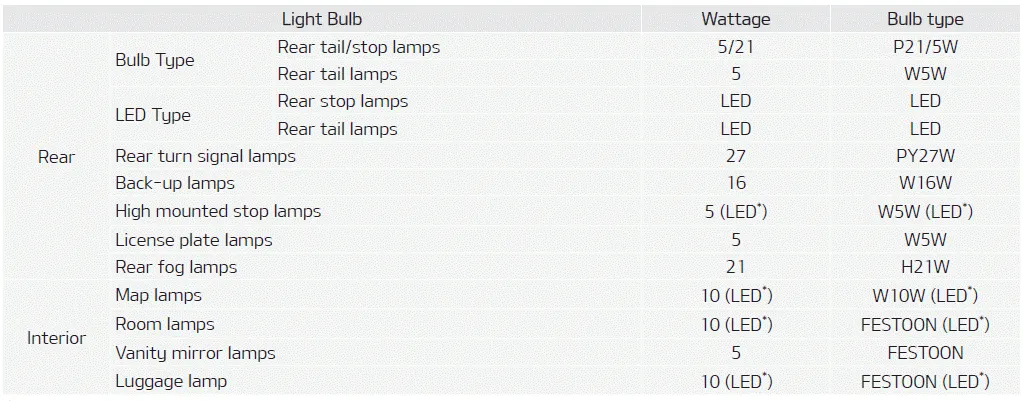

Bulb wattage
Tires and wheels
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make it work irregularly.
NOTICE
- We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that affects driving performance.
- When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary. Additionally required tire air pressure per km above sea level: 1.5 psi/km

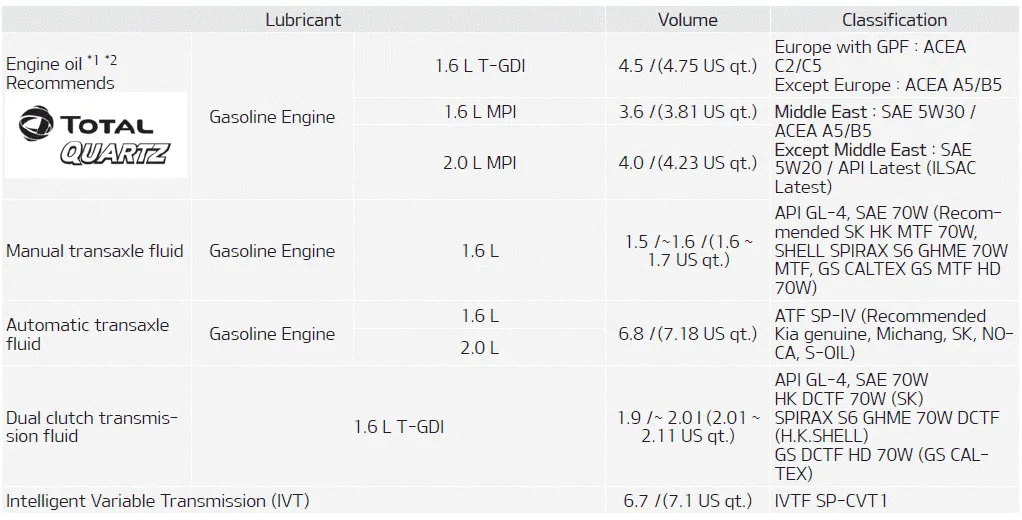

Recommended lubricants and capacities
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy. These lubricants and fluids are recommended for use in your vehicle.
Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining any lubricant. This is especially important in dusty or sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, higher viscosity engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated in before the next oil change. Proceed to select the recommended oil viscosity from the chart.
Vehicle identification number (VIN). Vehicle certification label

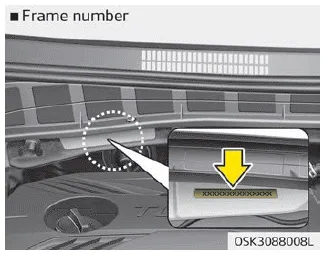

Vehicle identification number (VIN)
The vehicle identification number (VIN) is the number used in registering your vehicle and in all legal matters pertaining to its ownership, etc.
The VIN is also on a plate attached to the top of the dashboard. The number on the plate can easily be seen through the windshield from outside.
Vehicle certification label
The vehicle certification label attached on the driver’s (or front passenger’s) side center pillar gives the vehicle identification number (VIN).
Tire specification and pressure label. Engine number
Tire specification and pressure label
The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

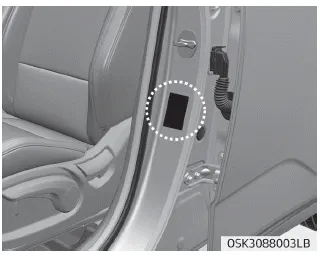

The tire label located on the driver's side center pillar gives the tire pressures recommended for your vehicle.

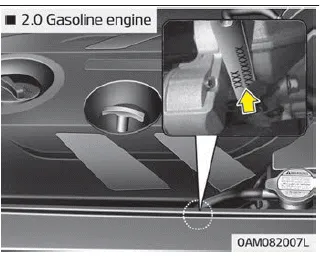

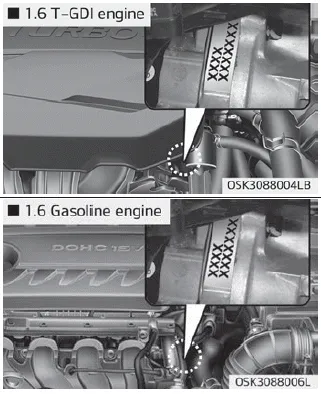

Engine number
The engine number is stamped on the engine block as shown in the drawing.
Air conditioner compressor label. Refrigerant label

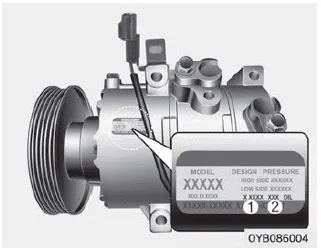

Air conditioner compressor label
A compressor label informs you the type of compressor your vehicle is equipped with such as model, supplier part number, production number, refrigerant (1) and refrigerant oil (2).
Refrigerant label
The refrigerant label is located on the front body trim.
Declaration of conformity. Fuel Label
Declaration of conformity
The radio frequency components of the vehicle comply with requirements and other relevant provisions of Directive 1995/5/EC.
Further information including the manufacturer's declaration of conformity is available on Kia web site as follows;
http://www.kia-hotline.com

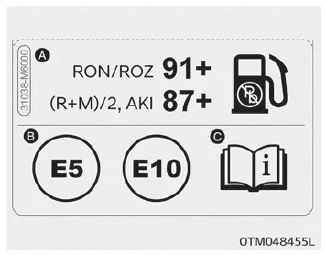

Fuel Label
Gasoline (Petrol) engine
The fuel label is attached on the fuel filler door.
A- Octane rating of unleaded Gasoline (Petrol)
1. RON/ROZ : Research Octane Number
2. (R+M)/2, AKI : Anti Knock Index
B- Identifiers for Petrol-type fuels
❈ This symbol means usable fuel. Do not use any other fuel.
C- For further details, refer to “Fuel Requirements” on page 1-03.
Diesel engine
The fuel label is attached on the fuel filler door.
A- Fuel : Diesel
B- Identifiers for FAME containing Diesel- type Fuels
❈ This symbol means usable fuel. Do not use any other fuel.
C- For further details, refer to “Fuel Requirements” on page 1-03.
