Kia Soul (SK3): DRIVER ATTENTION WARNING (DAW) SYSTEM / Resetting the system, System disabled
Resetting the system
- The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets Driver Attention Warning system.
- Driver Attention Warning system resets in the following situations.
- The vehicle is turned OFF.
- The driver unfastens the seat belt and then opens the driver’s door.
- Stop lasting more than 10 minutes. - Driver Attention Warning system operates again, when the driver restarts driving.
System disabled

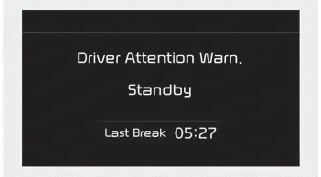

Driver Attention Warning system enters the ready status and displays the 'Disabled' screen in the following situations.
- The camera sensor keeps failing to detect the lanes.
- Driving speed remains over 180 km/h.
System setting Driver Attention Warning system is set to be in the normal sensitivity, when your vehicle is first delivered to you from the factory.
When the "Check System" warning message appears, the system is not working properly. In this case, have the system checked by a professional workshop.
